Frame/Axles | ZMK 180

Equipment frame/axles Standard Optional
2-axle chassis X
Permitted total weight 18000 kg X
Chassis frame galvanised, welded structure X

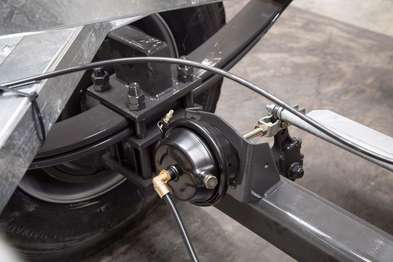

Parabolic suspension X
2-circuit air brake with ALB X
Hydraulic single-line brake without load adaptation valve, with flat-sealing sleeve, for export only   O
Hydraulic single-line brake with load adaptation valve and flat-sealing sleeve, for export only   O
Axle version 400 x 120, brake drums BPW X
Axle version 410 x 180, brake drums BPW   O
25 km/h version with ABE for GERMANY, for agricultural/forestry tractors. X
25 km/h version for export   O
40 km/h version with TÜV data sheet for Germany   O
60 km/h version with TÜV data sheet / for Germany, contour lights, side marker lights. Please note the tyre loads   O
65 km/h version with EBS 12 Volt and TÜV data sheet for Germany, side marker lights, contour lights. Pay attention to tyre loads ( ALB required) O
Tipping cylinder, 2150 mm stroke, limit switch X
Stopcock X
Patch coupling   O
Rear trailer coupling, automatic   O
Brake connection for 2nd Trailer / 2-circuit compressed air   O
Hydraulics for 2nd trailer   O

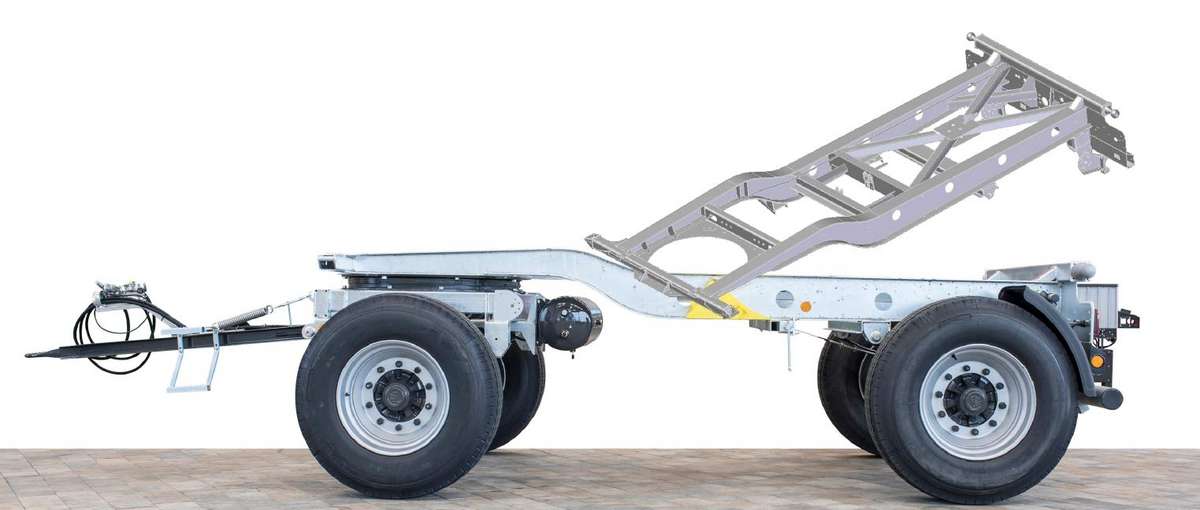

Frame: Weight-optimised frame (welded design) from the utility vehicle division for perfect ground adaptation

Frame/Axles ZMK/ZDMK | Image gallery
