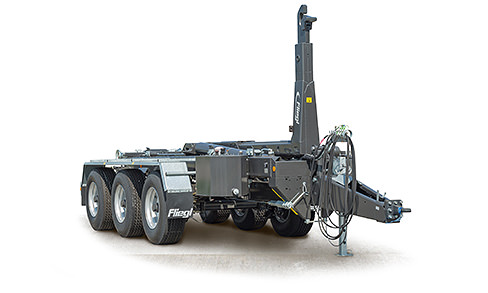

HOOK LIFT SYSTEM

Stable, flexible, efficient: the Fliegl hooklift system turns tandem and tridem roll-off tippers into transport all-rounders. Containers such as original Fliegl push-off containers, troughs, platforms and even large volume slurry tanks can be transported with just one hooklift chassis. The Fliegl hooklift is especially useful when containers have to be filled in a stationary manner.

The chassis acts as a lever arm and hook frame – an intelligent solution that reduces the weight of the vehicle, allows for low-profile construction and minimises effort. Benefit from the extra load capacity, stability and economy!

The Fliegl hook lift system is offered in three technical versions, of which Fliegl recommends the one with air suspension. The pneumatic tilting lowering system ensures optimum stability even at high inclination angles (up to 50°). Alternatively, the new hook lift trailer is also available with standard Gigant or Gigant plus suspension. In these variants, Fliegl recommends hydraulic support on the rear axle. The equipment range is completed by a hydraulic axle suspension as a third option.

With a hydraulic pressure of 180 bar and an oil quantity of only 28 l, the Fliegl hooklift moves up to 19 t - so loading and unloading work economically and quickly.

THE MAIN ADVANTAGES OF THE HOOK ROLL-OFF TIPPER AT A GLANCE

  • The beneficial design of the lever arm and hook also allows low pick-up heights with little effort.

  • Extremely powerful, with universal and flexible application.

  • Roll-off trough with hydraulic rear panel

  • High tilt angle of up to 50°

  • Swivelling drawbar for top and bottom attachment

  • On-board hydraulics 60 litre (optionally 90 l) driven by PTO shaft with hydraulic pump and oil container

ADVANTAGES AND POSSIBILITIES

Regardless of whether you are transporting containers of different sizes and designs, troughs or platforms, the Fliegl hook lift trailer is a transportation all-rounder. It can be loaded for example with the original Fliegl push-off containers or large-volume slurry tanks. This vehicle is especially suitable for tasks where containers have to be stationary when filled.

Fliegl has taken the drawbar unit of the new hook lift trailer from its push-off trailers and other large vehicles. In this area, the hydraulically adjustable construction with integrated damping has proven itself for years in terms of stability and practical benefits

STANDARD EQUIPMENT

  • Swivelling drawbar for top and bottom attachment
  • Hydraulic drawbar suspension
  • On-board hydraulics 60 litre driven by PTO shaft with hydraulic pump and oil container
  • Forged, easily replaceable lifting hook
  • Reversible locking system for inside and outside locking
  • Large cast steel rollers (ø 310 mm) with large centring bevel make it easier to raise containers
