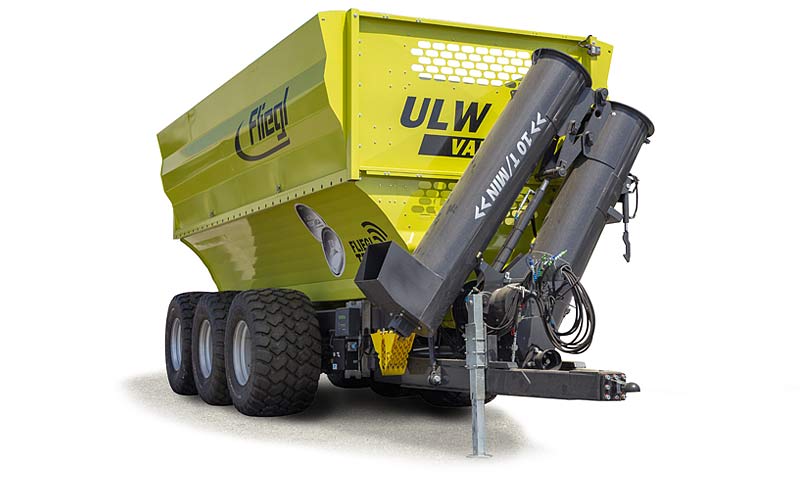

ULW 40 | Standard equipment


  • Tridem chassis
  • permissible total weight 29,000 kg, drawbar load 2000 kg
  • adjustable Drawbar lower hitch
  • DIN towing eye 40 (Ø 40 mm)
  • 2-circuit compressed air with ALB
  • Parabolic suspension Gigant-Plus
  • 3 brake axles front rigid, middle rigid, rear steered, hydraulically lockable, up to 60 km / h (1 control unit required)
  • Axle version 410 x 120 brake drum BPW
  • Tires 600 / 55-26.5 16 PR / load per wheel 5150 kg at 40 km / h
  • 25 km / h version for export
  • Overload auger diameter 400mm
  • Viewing window in the bulkhead
  • hydraulic support leg
  • 2 five-chamber lights 12 V with 7-pin connector and impact-resistant glass
