FLIEGL DOLLY AXLE
Can an agricultural tractor and a truck trailer work together? Yes, and actually quite well – with the help of the Fliegl dolly axle. This is a separate vehicle which turns the tractor-trailer combination into an articulated road train. The tractor-trailer combination can thus be up to 18.75 m long. Unlike with an agricultural trailer, the length of the semi-trailer is irrelevant. And in addition to longer lengths, heavier loads are also possible. Articulated road trains consisting of the dolly and semi-trailer can have a total weight of up to 36 t. The Fliegl dolly systems are the logical response to ever greater harvest output and ever longer transport routes.

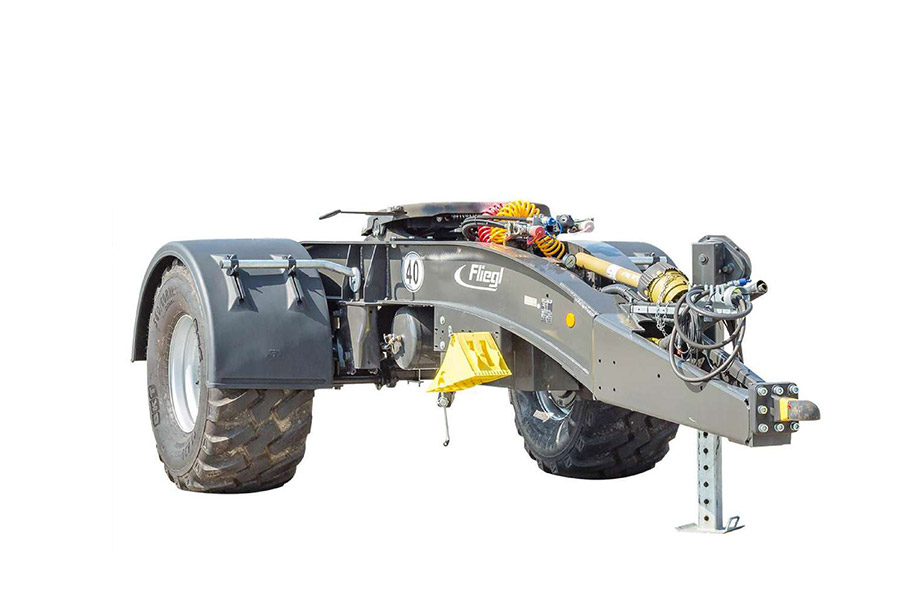

SINGLE-AXLE DOLLY
The single-axle version features a coupling load of 10,500 kg. A hydraulic supporting foot and a mechanically adjustable fifth-wheel coupling are included as standard. The axle is available with either parabolic or air suspension. Customers can also choose between multiple tyre options. With the standard tyres, the smaller version of the dolly axle achieves a coupling height of 1300 mm.
Coupling load 10,500 kg
Coupling height with standard tyres approx. 1300 mm

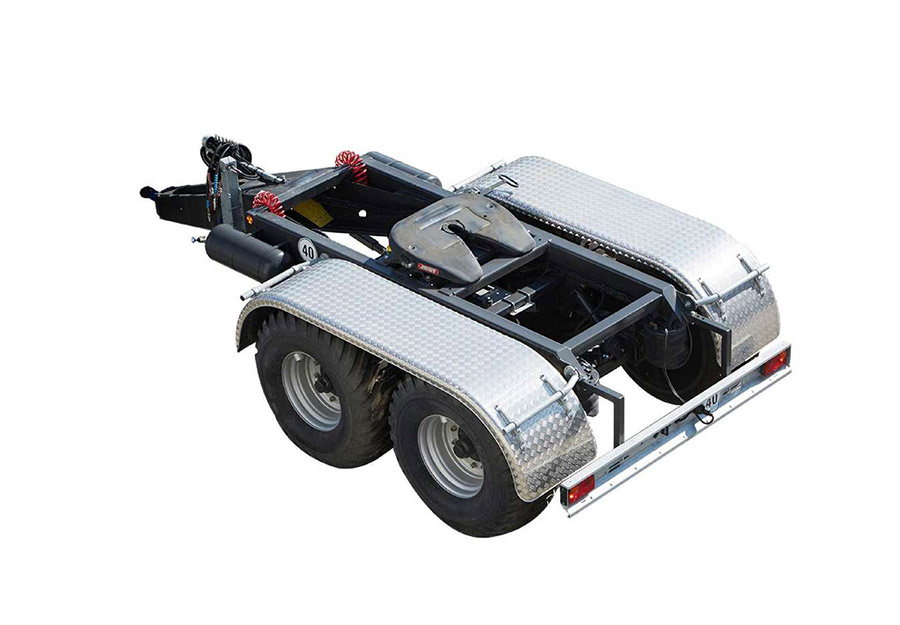

TANDEM DOLLY
The tandem version of the dolly axle enables a coupling load of 17,000 kg. A hydraulic supporting foot and a mechanically adjustable fifth-wheel coupling are included as standard. The tandem version is equipped with a Titan assembly with parabolic suspension. Air suspension is also available as an option. Customers can also choose between multiple tyre options. With the standard tyres, the smaller version of the dolly axle achieves a coupling height of 1300 mm.
Coupling load 17,000 kg
Coupling height with standard tyres approx. 1300 mm
