“GARANT” DRAG HOSE SPREADER

Low-loss slurry application

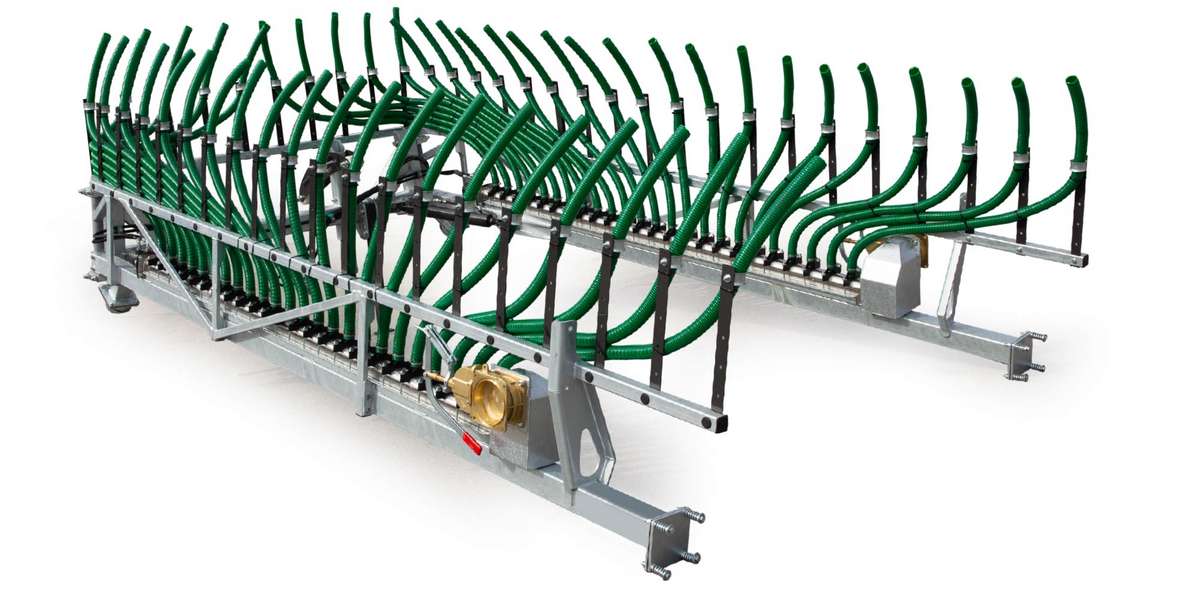

Precision, efficiency and high impact - three keywords that the Fliegl Garant drag hose spreader certainly meets. The slurry is applied directly to the ground with low emissions. The loss of ammonium nitrogen alone is reduced multiple times over through the near-surface strip-like output compared to widespread distribution with impact head or swivel manifold. By operating the discharge valve in combination with the hydraulic folding of the hoses on the headland, the slurry flow is stopped down to the last drop, guaranteeing an exact start and stop without any problems. The installed Fliegl screw distributor also ensures perfect cross and longitudinal distribution in the Garant.

Media & download

  • Solid design but nevertheless low net weight through special frame and spreader construction

  • Specially tilted swivel joints ensure an extremely slim transport position and therefore good all round vision

  • Very narrow transport width of about 2,300 mm at the top

  • Automatic drip stop as the spreader is swivelled up

  • Outstanding slurry distribution, low maintenance and low oil requirement (max. 20l) thanks to the Fliegl screw distributor

  • No kinks on the outlet hoses when folding in/out, thanks to the special folding mechanism

  • Section control possible

  • Mechanical shut-off of individual hose outlets possible

  • Simple mounting directly on the tank possible

  • With automatic slope compensation as standard

Storage box opens mechanically or hydraulically

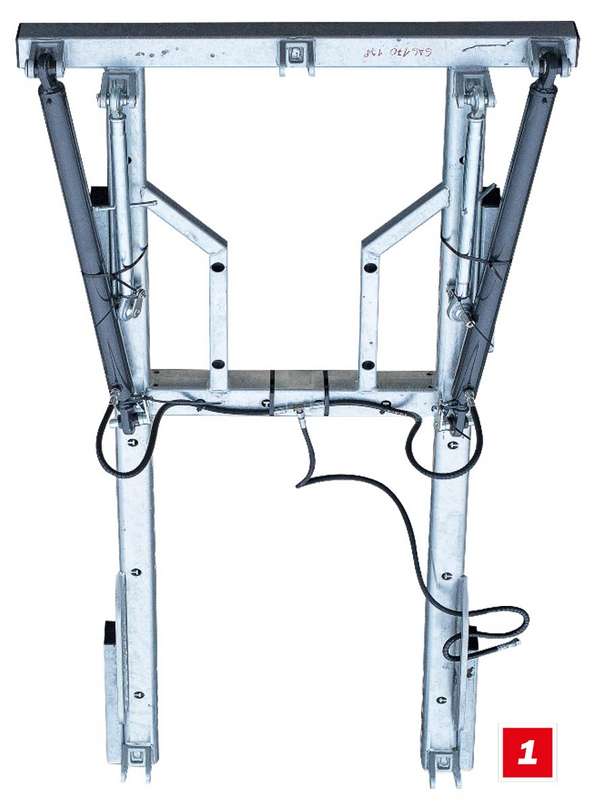

Specially tilted swivel joints
Integrated overpressure protection
Screw distributor control unit
Pressure sequence valve
Automatic slope compensation for optimal ground adaptation
Extremely compact transport width of 2600 mm at bottom and 2300 mm at top

As standard, the GARANT is operated by two tractor control units. A tractor control unit is responsible for the folding via the pressure sequence valve (lifting, unfolding, lowering). The second control unit supplies the oil motors of the screw distributor, while a time relay controls the direction of rotation of the screw.

EQUIPMENT

T-piece for an additional outlet (e.g. for a baffle plate spreader) in combination with lateral shut-off.
Mechanical section control
Optional EASY comfort control see Fliegl Skate
Control block with oil filter - see Fliegl Skate
Mechanical shut-off of individual hoses
Holder for suction line (shown here folded-up)
Only required for extremely high fibre content: shredding cutter to be mounted centrally between tank and spreader (oil capacity 60l required). Controlled directly from the towing vehicle control unit
Parking jacks to dismantle the spreader

RETROFITTING | THE GARANT DRAG HOSE SPREADER -ALSO FOR THIRD PARTY TANKS

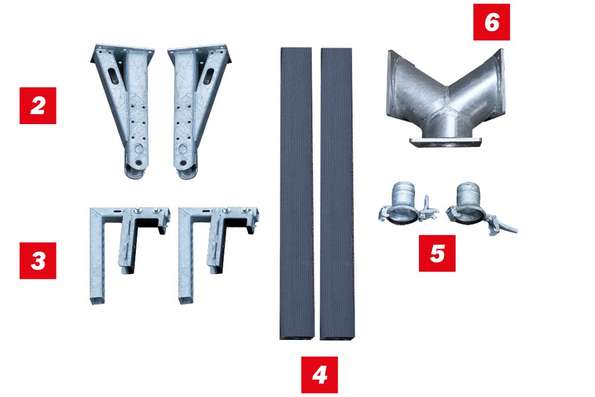

Standard delivery:

Pre-assembled drag hose spreader,

1 I H-frame,
2 I H-frame bracket,
3 I transport lock,
4 I flexible hoses with
5 I nozzles and
6 I Y piece for slurry feed

TECHNICAL DATA

    GARANT 60 GARANT 75 GARANT 90 GARANT 120 GARANT 150 GARANT 180
Working width m 6 7,5 9 12 15 18
Number of outlets   24 30 36 48 60 72
Weight kg 620 750 990 1190 1400 1770
Transport width (top / bottom) mm 2300/2600 2300/2600 2300/2600 2300/2600 2300/2600 2300/2600
Boom ends hydr. foldable m - - - - - -
