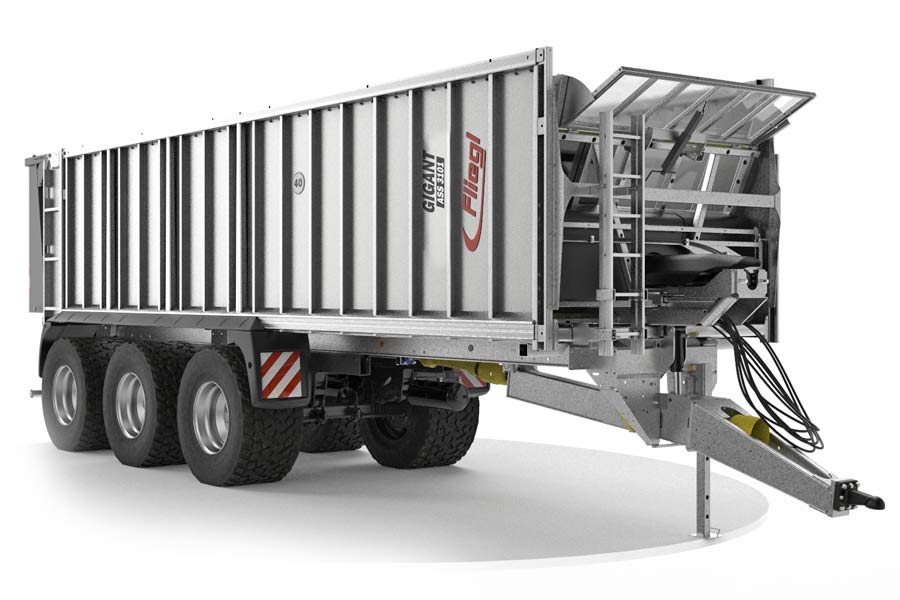

ASW 3101 | STANDARD EQUIPMENT (volume of approx. 36 - 56 cbm)


  • Tridem chassis
  • Perm. Total weight 29,000 kg, drawbar load 2,000 kg
  • Hydraulically suspended drawbar, rotatable for top hitching, hitch height can be easily adjusted as required
  • DIN towing eye 40 (Ø 40 mm)
  • Swap body
  • Drop support foot
  • 2-circuit air brake with ALB
  • Axle unit can be moved mechanically
  • 3 brake axles: middle rigid, first and last steered, hydraulically lockable
  • Axle version 410 x 120 brake drum BPW
  • Tires 385/65 R 22.5 new
  • 40 km / h version with EC type approval and COC papers
  • Parabolic suspension Gigant unit Plus
  • Bridge 9,300 mm x 2,380 mm
  • Back wall and side walls 2,000 mm high, with front wall increase
  • hydraulic rear wall 800 mm with grain pusher 420 mm x 250 mm
  • hydraulic sliding floor with all-round polyurethane strips, best sealing, hose routing
  • LED lighting 12 V with 7-pin connector
