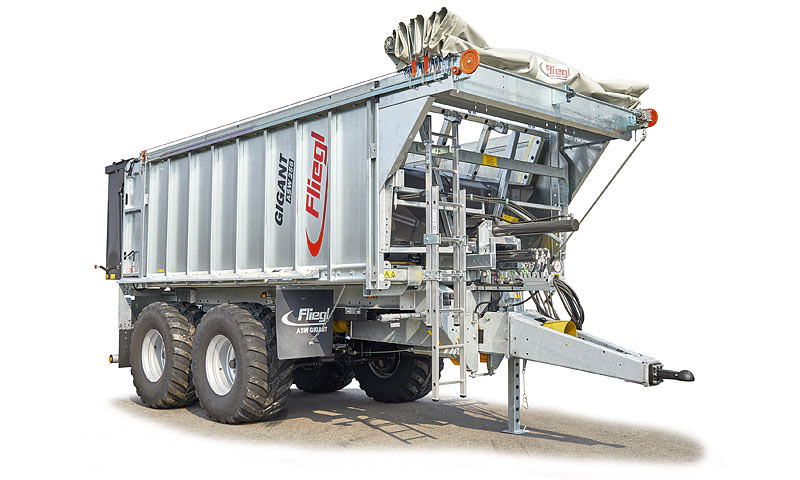

ASW 256 | STANDARD EQUIPMENT (volume approx. 20-26 cbm)


  • Tandem chassis
  • Perm. Total weight 20,000 kg, drawbar load 2,000 kg
  • Hydraulically suspended drawbar, rotatable for top hitching, hitch height can be easily adjusted as required
  • DIN towing eye 40 (Ø 40 mm)
  • Swap body
  • Drop support foot
  • 2-circuit air brake with ALB
  • Axle unit can be moved mechanically
  • 2 brake axles, both rigid
  • Axle version 410 x 120 brake drum BPW
  • Tires 385/65 R 22.5 new
  • 40 km / h version with EC type approval and COC papers
  • Parabolic suspension titanium unit
  • Bridge 4,800 mm x 2,380 mm
  • Rear wall and side walls 1,500 mm high, without front wall increase
  • hydraulic rear wall 800 mm with grain pusher 420 mm x 250 mm
  • hydraulic sliding floor with all-round polyurethane strips, best sealing, hose routing
  • LED lighting 12 V with 7-pin connector
