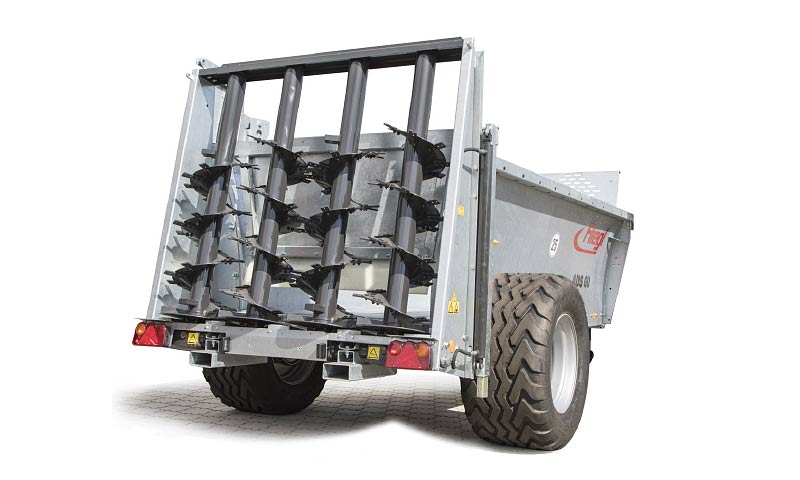

Push-off manure spreader ADS 60 single axis: approx. 6 m³, | Overview

  • Single axle chassis
  • permissible total weight 6000 kg, drawbar load 1000 kg
  • Zugholm rigid top hitch
  • DIN towing eye 40 (Ø 40 mm)
  • Overrun brake - backmatic
  • 25 km / h version for GERMANY with TÜV - data sheet for la-fo ZGM.
  • Tires 15 / 70-18 16 PR / load per wheel 3450 kg at 40 km / h
  • Spreading trough: approx. 3800 mm x 1.300 / 1.650 mm x 950 mm
  • Spreader: Housing with 4 standing rollers, painted Nova Gray
  • Mechanical potentiometer
  • hydraulic sliding wall
  • Heavy jockey wheel, foldable
  • Lighting 12 V 7-pin connector
  • Spreading roller protection
