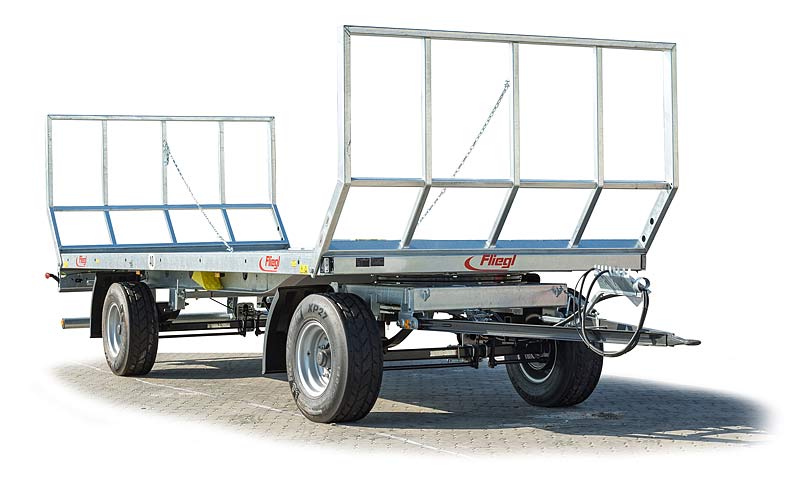

ZPW 120 B | Standard equipment


  • 2-axle chassis
  • Permitted total weight 12000 kg
  • 2-circuit compressed air with ALB
  • Frame galvanised with integrated pallet stop
  • Bridge 6900 mm x 2480 mm
  • Floor made from galvanised steel plate (3.5 mm)
  • Parabolic suspension
  • 30 km / h version with EC type approval and COC papers
    (including fenders, underrun protection and side marker lights)
  • Tyres 12.5/80-18 14 PR / load capacity per wheel 3000 kg at 40 km/h
  • sturdy slewing ring
  • 2 five-chamber lights 12 V with 7-pin connector and impact-resistant glass
  • Bale safety grid for round bales, front and rear
