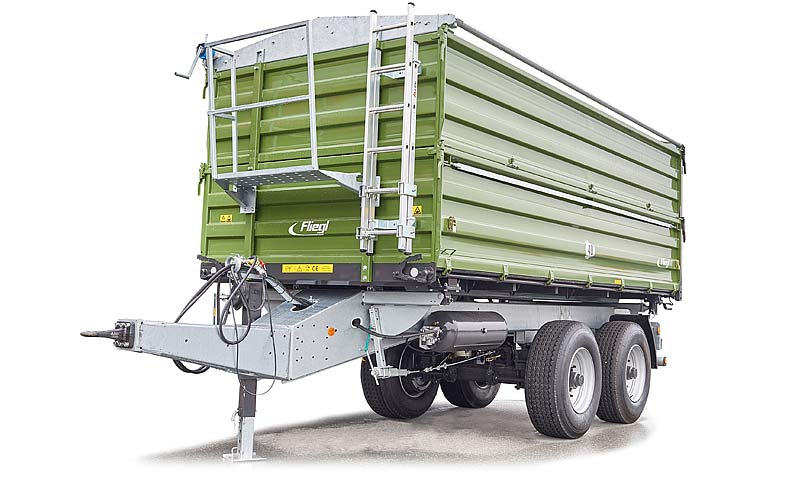

TDK 200 | Standard equipment

  • Tandem chassis
  • Permitted total weight 20,000 kg, drawbar load 2,000 kg
  • Bridge: 5000 mm x 2320/2220 mm (tapered), plug-in corner stanchions, middle stanchions, all-steel floor, all-round rubber seal with special profile, bridge frame made of high-quality steel profiles, painted nova grey
  • 600 mm main drop side, insertion tube, central locking at the rear, right and left, strap, grain spout 400 mm x 230 mm, steel side walls
    (sandblasted, primed and powder coated light green)
  • Profi frame, galvanised
  • Drawbar, unsprung, swivelling, top hitch
  • Parabolic suspension, Titan assembly
  • DIN drawbar eye 40 (Ø 40 mm)
  • 2 brake axles, both rigid
  • Axle version 420 x 180 brake drum ADR, track 1820 mm
  • 2-circuit compressed air with ALB
  • Tyres 385/65-R22.5 RE / load capacity per wheel 5000 kg at 60 km/h
  • 25 km/h version for GERMANY with TÜV data sheet for agricultural/forestry tractors
  • Hydraulic supporting foot
  • Tipping cylinder, 2150 mm stroke, limit switch
  • 2 five-chamber lights 12 V with 7-pin connector and impact-resistant glass
  • Stopcock
