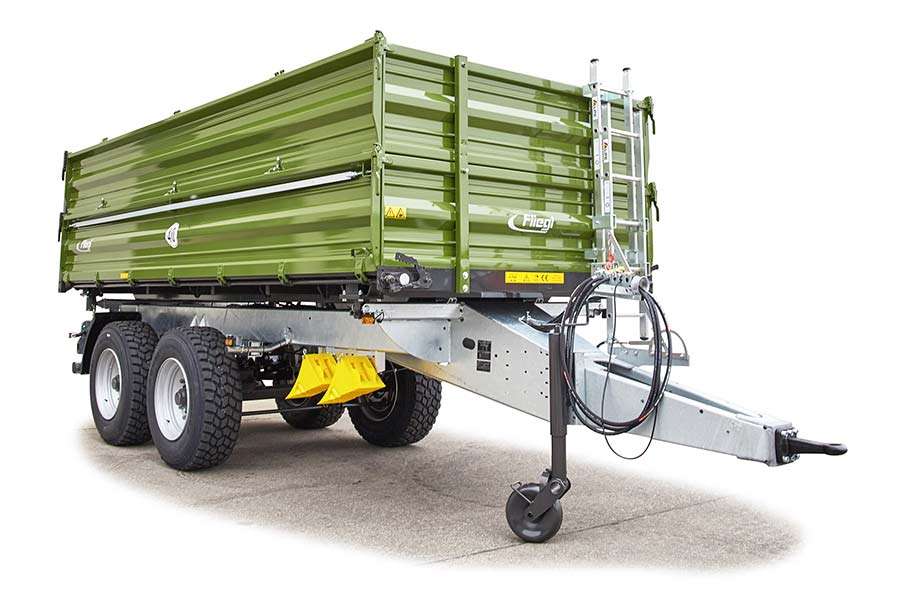

TDK 160-88 | Standard equipment


  • Tandem chassis
  • Permitted total weight 16000 kg, drawbar load 2,000 kg
  • Bridge: 5000 mm x 2320/2220 mm (tapered), plug-in corner stanchions, middle stanchions, all-steel floor, all-round rubber seal with special profile, bridge frame made of high-quality steel profiles, painted nova grey
  • Basic tailgate 600 mm, slide-in tube, central locking rear, right and left, tensioning strap, grain outlet 400 mm x 230 mm, steel tailgates (sandblasted, primed and powder-coated light green)
  • Profi frame, galvanised
  • Parabolic suspension, Titan assembly
  • Drawbar unsprung, swivelling for top hitch and bottom hitch
  • 2 brake axles BPW 400 X 80, both rigid
  • 2-circuit compressed air with ALB
  • Tipping cylinder, 2150 mm stroke, limit switch
  • 2 five-chamber lights 12 V with 7-pin connector and impact-resistant glass
  • Stopcock
