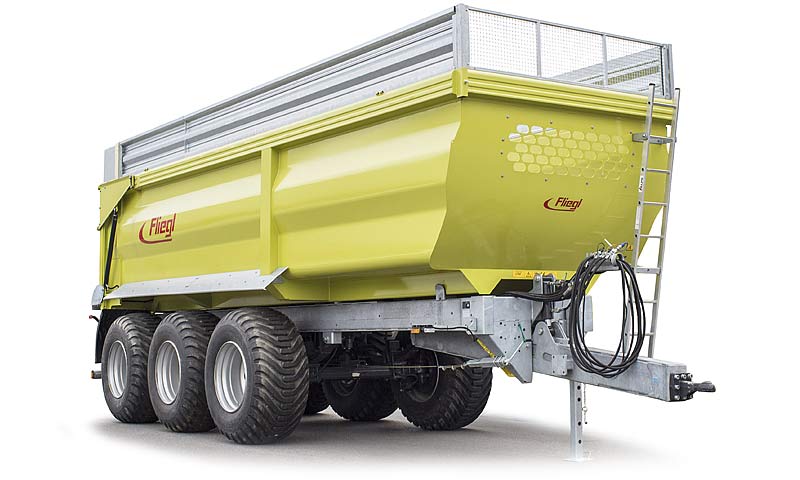

TMK 378 | Standard equipment

  • Tridem chassis
  • Permitted total weight Germany 29000 kg, drawbar load 2000 kg
  • Profi frame, galvanised
  • Trough 7800 mm (total length with bulkhead bevel and 300 mm back wall) x 2320/2220 mm x 1750 mm (tapered), all-steel trough primed with 2-component coating light green, with front inspection window
  • Hydraulic high-capacity rear panel, 300 mm, with grain slide 400 mm x 230 mm
  • Parabolic suspension, Jumbo Gigant Plus assembly
  • Hydraulically sprung draw gear, swivelling for upper attachment, easily adjustable coupling height to suit different requirements
  • DIN drawbar eye 40 (Ø 40 mm)
  • Axle version 410 x 120, brake drums BPW
  • 3 brake axles / front steered, centre rigid, rear steered
  • 2-circuit compressed air with ALB
  • Tyres 385/65-R22.5 RE / load capacity per wheel 5000 kg at 60 km/h
  • 30 km / h version with EC type approval and COC papers
  • Supporting stand
  • Tipping cylinder with 3400 mm stroke
  • LED lighting 12 V 7-pin connector
  • 2 five-chamber lights 12 V with 7-pin connector and impact-resistant glass
  • Stopcock
