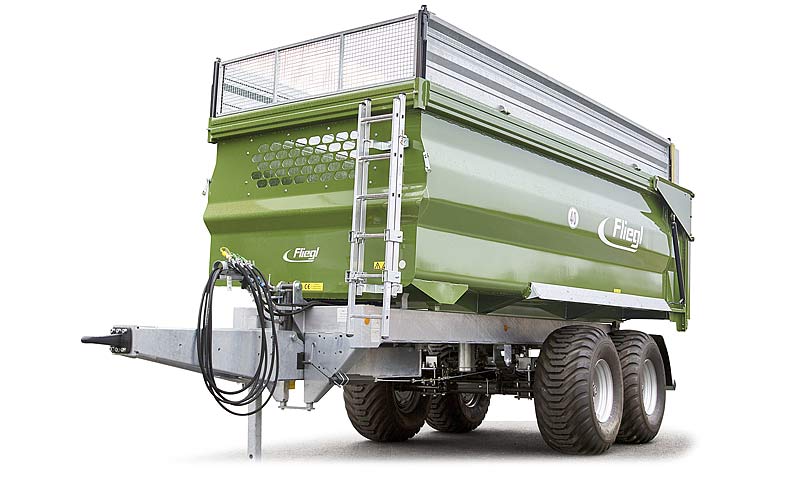

TMK dumper
TMK 200 | Standard equipment
- Tandem chassis
- Permitted total weight Germany 20000 kg, drawbar load 2000 kg
- Profi frame, galvanised
- Trough 5150 mm x 2320/2220 mm x 1500 mm (tapered), all-steel trough primed with 2-component coating light green, with front inspection window
- hydraulic rear panel, grain outlet 400 mm x 230 mm
- Parabolic suspension, Titan assembly
- Drawbar, unsprung, swivelling, top hitch
- DIN drawbar eye 40 (Ø 40 mm)
- Axle version 410 x 120, brake drums BPW
- 2 brake axles, both rigid
- 2-circuit compressed air with ALB
- Tyres 385/65-R22.5 RE / load capacity per wheel 5000 kg at 60 km/h
- 30 km / h version with EC type approval and COC papers
(including fenders, underride protection and side marker lights) - Hydraulic supporting foot
- Tipping cylinder with 2150 mm stroke
- 2 five-chamber lights 12 V with 7-pin connector and impact-resistant glass
- Stopcock
