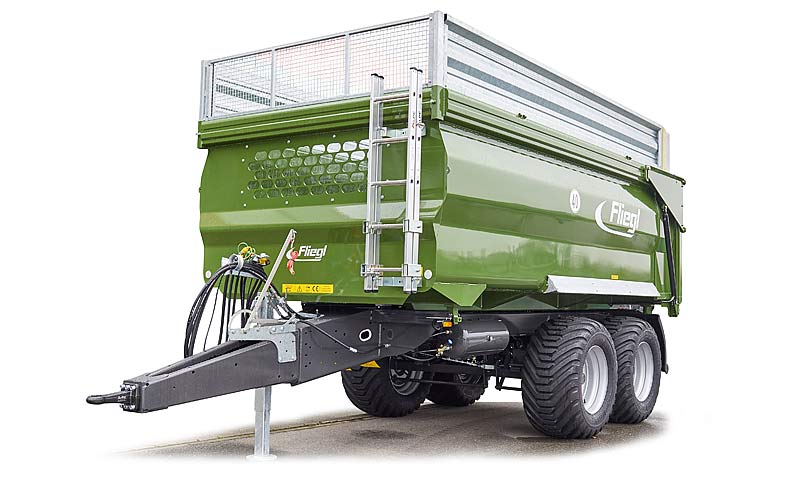

TMK 140 | Standard equipment


  • Tandem chassis
  • Permitted total weight Germany 14000 kg, drawbar load 2000 kg
  • Profi frame, galvanised
  • Trough 4650 mm x 2320/2220 mm x 1300 mm (tapered), all-steel trough primed with 2-component coating light green, with front inspection window
  • hydraulic rear panel, grain outlet 400 mm x 230 mm
  • Parabolic suspension, Titan assembly
  • Drawbar, unsprung, swivelling, top hitch
  • DIN drawbar eye 40 (Ø 40 mm)
  • 2 brake axles BPW 400 X 80, both rigid
  • 2-circuit compressed air with ALB
  • Tyres 385/65-R22.5 RE / load capacity per wheel 5000 kg at 60 km/h
  • 30 km / h version with EC type approval and COC papers (including fenders, underride protection and side marker lights)
  • Hydraulic supporting foot
  • Tipping cylinder with 1850 mm stroke
  • 2 five-chamber lights 12 V with 7-pin connector and impact-resistant glass
  • Stopcock
